PRODUCT DESCRIPTION

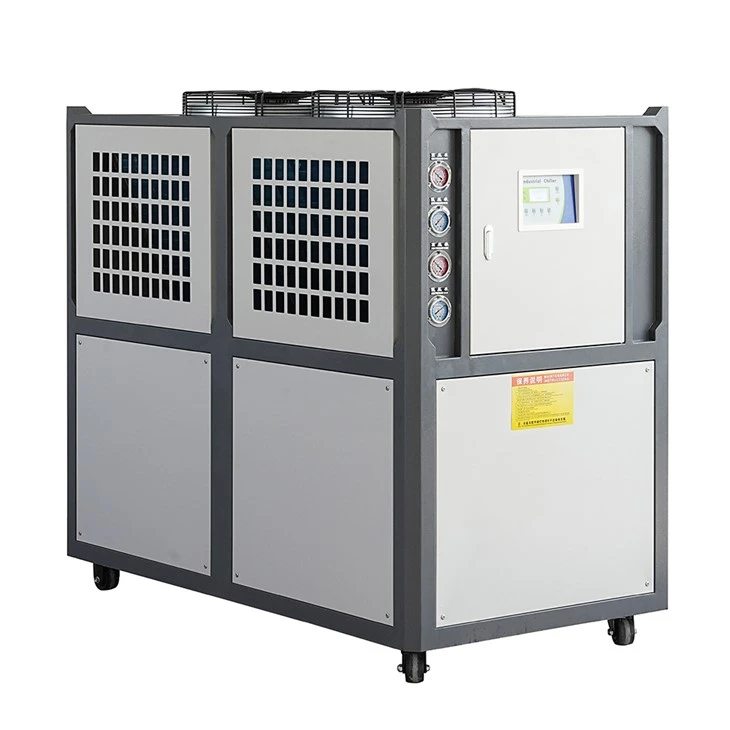

Item: Cooling system chiller air cooled chiller
Model:MG-8A
Cooling capacity: 19250kcal/hr,22kw
Input power: 6.8kw
Power supply: 380 v/3ph/50hz or as your request
Refrigerant: R407c or your request
Compressor: Hermetic piston or scroll type
Cooling fan :2 set
Condenser type: "V" type
Evaporator: Shell and tube
Cooling system chiller Features:
Packaged design,cooling tower and pump are not needed.
Machine room is not needed,chiller water is builtin,so it
Is suitable for outdoor installation to save space
Large cooling capacity from 7250kcal to 1243600kcal.
Cooling system chiller Applications:
Widely applied to plastic,electroplating,hardware,
dyeing and finishing,injection molding,cold bath sauna etc.
PRODUCT DETAILS
|
Air cooled chiller with inside water tank, water pump, electric control box, it's complete machine |
Evaporator: High efficient Shell & Tube Refrigerant: R22/R407c/R134a or your claim |
|
Condenser: adopt "V" type with low noise outer-rotor axial fan |
Compressor: Mitsubishi/Sanyo/Copeland etc brand or your claim. |
Product Technical
| Model | MG-3A | MG-5A | MG-8A | MG-10A | |
|
Cooling capacity |
Kw | 8.4 | 14 | 22 | 29 |
| Kcal/h | 7250 | 12300 | 19250 | 25000 | |
| Input power | kw | 2.8 | .3 | 6.8 | 8.4 |
| Power supply | 380V/50HZ/3PH or your required | ||||
|
Refrigerant |
type | R22/R407c | |||
| type of control | Capillary tube/expansion valve | ||||
|
Compressor |
Type | Hermetic piston/scroll type | |||
| Quantity | 1 | 1 | 1 | 1 | |
| Input power | 2.1 | 3.75 | 6 | 7.5 | |
|
Condenser |
Type |
shell and tube Highly effective red copper pipe covered into aluminium fins+low noise outer-rotor axial fan |
|||
| Cooling air flow (m3/h) | 3000 | 5000 | 8000 | 10000 | |
| Fan power kw | 0.18*1 | 0.18*2 | 0.18*2 | 0.18*2 | |
|
Evaporator |
Type |
Coli type/Internal thread high efficiency shell and tube heat exchange |
|||
| Chilled water flow(m3/h) | 7 | 7 | 12 | 16 | |
| Chiller water outlet& inlet | 1 | 1 | 1.5 | 1.5 | |
| Cistern Storage | L | 64 | 80 | 90 | 90 |
| Safety Protection | High and low pressure protection,overload protection, anti-phase protection,compressor over temperature protection,fusible plug protection,automatic temperature switch protection,etc | ||||
| Dimension |
L×W×H mm |
980×680×1200 | 1200×700×1330 | 1300×800×1480 | 1300×800×1480 |
| Net Weight | kg | 135 | 175 | 280 | 320 |
Packaging & Shipping
Standard wooden pacakge |
Shipping to our port or load container |
FAQ
Q:How to control the products quality?
We have always placed great emphasis on quality level is matintained. Moreover, the principle we always maintain is "to provide customers better quality, better price and better service".
Q:Can you provide OEM service?
Yes, We work on OEM orders.
Q: Is it possible to visit your factory?
Yes, warm welcome to visit us
Q:Shipping Method and Shipping Time?
1. By sea port to port: about 20-35 days
2. Agent appointed by client
