Products Description

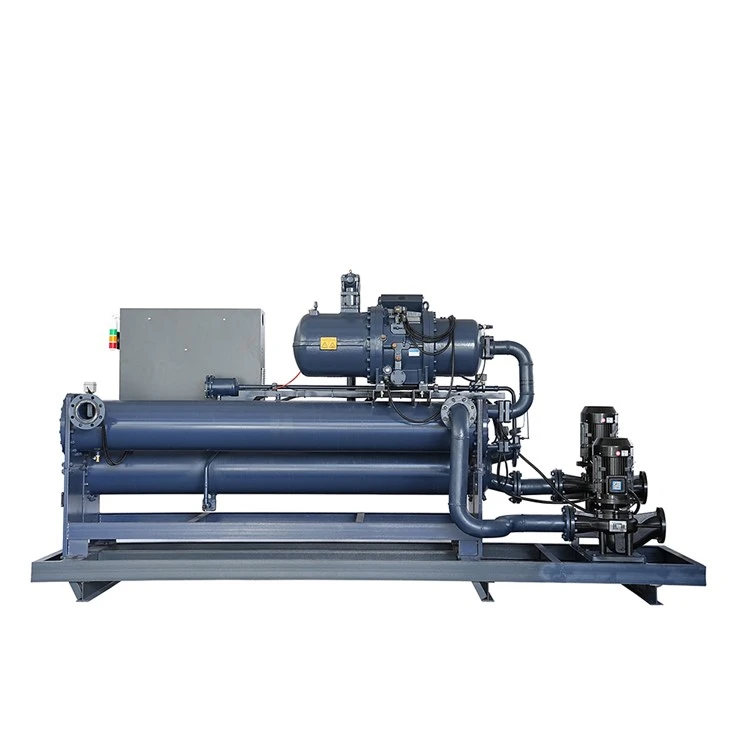

water cooled screw chiller with international brand semi-closed screw compressor, including single compressor and double compressor two type, with high efficiency shell and tube condenser and evaporator, as well as convenient maintenance.combined with microcomputer control,powerful and simple operation. Compressor can be adjustment multi-stage energy,compared with ordinary one energy saving 25%-30%. Microcomputer control system with self-diagnostic capabilites,
automated troubleshooting,combined with alarm,reduce failures and long service life. Machine with remote control switch, supports multi-language online switch, with touch screen, easy to operate.
01
High Quality
Stable and reliable
The key core components of the unit, are selected from internationally renowned brands, with stable performance and quality assurance. Coupled with advanced microcomputer control technology, the equipment runs more smoothly and reliably.
02
Advanced Equipment
Perfect protection
Strong self-diagnosis function and perfect protection. It has comprehensive protection functions. The alarm parameters can be automatically saved, which is convenient for later query.
03
Professional Team
Strong cooling capacity
Strong cooling capacity, precise temperature control and wide temperature range. Adopt environmentally friendly refrigerant, no pollution to the environment. Automatically identify the load size and realize automatic energy adjustment.
04
Custom Service
Efficient heat exchange technology
The evaporator adopts high-efficiency shell and tube type, which greatly improves the exchange efficiency of cooling capacity, and the heat exchange efficiency of the evaporator is high.
Not sure which chiller you need ? Contact us with your machine details. we will recommend the right model.
High cooling efficiency
Stable performance & Long lifespan
OEM & custpm solutions
Stable Operaton 24/7
24/7 technical support
high quality
Adopts screw type compressor , single screw compressor or double screw compressor can be choose.
custom service
Standard brand compressor is Hanbell, also can be choose Bizter and other brand compressor. VFD type compressor can be provided.
high quality
High-efficiency shell and tube type evaporator, improves the exchange efficiency of cooling capacity
custom service
According different working condition , the material can choose copper , stainless steel, and aluminium brass type.
high quality
Schneider electric control system with microcomputer control technology ,supports multi-language online, with touch screen, easy to operate.
custom service
Support Siemens touch screen and MODBUS RTU remote monitoring
high quality
According to the customer's customization, it is equipped with a frequency converter. More save power.
custom service
Standard frequency converter is china local famous brand, also can be choose Siemens or ABB.
Technical parameters
|
Water cooled screw chiller Technical Parameter |
||
|
Model |
MG-120WS |
|
|
Evaporator temperature |
10 degree |
|
|
Condenser temperature |
54.4 degree |
|
|
Cooling capacity |
Kw |
385 |
|
Kcal/h |
331100 |
|
|
HP |
120 |
|
|
Input power |
kw |
87 |
|
Power supply |
380v/50hz/3ph |
|
|
Capacity control |
0%-25%-75%-100% |
|
|
Refrigerant |
Type |
R22 |
|
Type of control |
Expansion Valve |
|
|
Compressor |
Type |
Semi-hermetic screw type |
|
Qty |
1 |
|
|
Evaporator |
Type |
Shell and tube evaporator |
|
Chilled water flow (m3/h) |
66 |
|
|
Chilled water outlet&inlet |
4' |
|
|
Condenser |
Model |
Shell and tube |
|
Cooling water flow (m3/h) |
/ |
|
|
Cooling water outlet&inlet |
/ |
|
|
Water pump |
kw |
11*2 |
|
Cooling tower |
Water flow m3/h |
125T |
|
Protector |
Water pump interlock protection,leakage protection,overload protection,over pressure protection,owe pressure protection,open phase,anti-phase protection,refrigerant abnormal protection,refrigerant over high the relief valve protection,compressor over temperature protection,hydraulic protection, water shortages protection,etc. |
|
|
Dimension |
L (mm) |
3040 |
|
W(mm) |
1250 |
|
|
W(mm) |
1760 |
|
|
Set Weight |
kg |
2350 |
Contact now
Not the cooling capacity you need ? Contact us get more technical information or quote.
