150 Psi Air Compressor Description
150Psi air compressor The unit consists of compressor head, air intake system, compressor exhaust system, cooling and lubrication system, compressor air volume regulation and control system, control panel, electrical and automatic protection system, etc.
Noramlly working pressure is 0.8MPa, 150psi we can offer also. with 150psi air dryer and air tank .
Air-end
High efficiency
Best rotor speed
Low vibration, stable and
best performance
Adopt the triple design of cyclinder
& taper roller bearing.
Longer service life.
Pipe system
Stainless steel hard pipe.
Stable and no aging problem
Good heat dissipation effect
Best sealed O ring
No leakage problem
Long service life

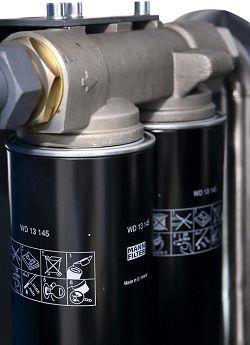

Oil filter
High precision filter effect
Keep the oil system clean
Superfine glass fiber,
Dust-holding capcacity is 4 times
Bigger than filter paper
Protect air-end, and avoid to be damaged
By the bad environment.
PLC control system（English/Chinese two language can be selected in the system）
The whole system situation
will be showed in the controller,
system with maintenance remind,
fault alarm and safely shutdown function.
PLC control system can be diagnosed and
protected by it-self.
PLC control system has block control and
remove control function(option)
Technical data
Model | Drive type | Motor power (KW) | F.A.D @Pressur | Conection（lnch） | Size （mm） | weight（kg） |
XZH-G7.5 | Belt Driven | 7.5 |
| G1/2“ | 850*600*850 | 220 |
XZH-G11 | 11 |
| G3/4“ | 850*600*950 | 280 | |
XZH-G15 | 15 |
| G1“ | 950*870*1230 | 380 | |
XZH-G18.5 | 18.5 |
| G1“ | 950*870*1230 | 500 | |
XZH-G22 | 22 |
| G1“ | 950*870*1230 | 540 | |
XZH-G37 | 37 |
| G1-1/2“ | 1150*990*1390 | 730 | |
XZH-G22D-8 | Direct Driven | 22 | 3.6@0.8 | G1“ | 1410*850*1135 | 560 |
XZH-G37D-8 | 37 | 6.2@0.8 | G1-1/2“ | 1530*930*1255 | 740 | |
XZH-G45D-8 | 45 | 7.1@0.8 | G1-1/2“ | 1700*1050*1255 | 970 | |
XZH-G55D-8 | 55 | 10.0@0.8 | G1-1/2“ | 1800*1125*1430 | 1180 | |
XZH-G75D-8 | 75 | 13.0@0.8 | G2“ | 2000*1300*1600 | 1470 |
