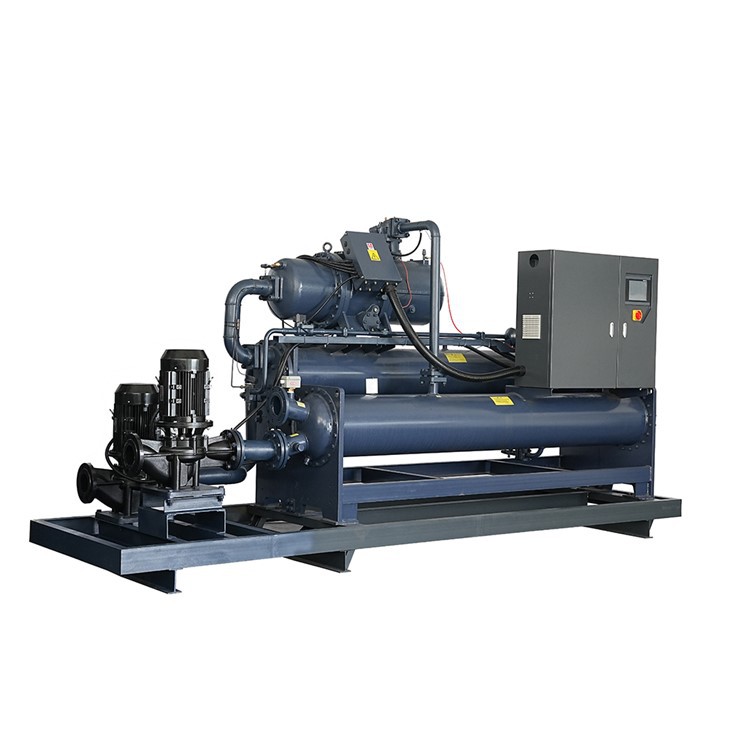

Energy-saving chiller
1. Core Refrigeration System
Compressor: The power core screw-type, determining refrigeration capacity and energy efficiency.
Condenser (Water-cooled): Shell-and-tube / Plate heat exchanger, using cooling water to remove heat from the refrigerant. Requires external cooling tower + cooling water pump.
Evaporator: Shell-and-tube / Plate type, where the refrigerant exchanges heat with process water to produce chilled water.
Throttling Device: Expansion valve , controls refrigerant flow rate and pressure.
2. Water Circulation System
Chilled Water Pump: Delivers low-temperature chilled water to equipment, returns to evaporator after heat absorption.
Water Tank / Storage Tank: Stabilizes water pressure, buffers flow, facilitates makeup water and blowdown.
Cooling Water Pump + Cooling Tower: Supplies circulating cooling water to condenser, dissipates heat to atmosphere.
3. Electrical Controls and Protection
Thermostats, high/low pressure protection, overload protection, flow switches, freeze protection, etc., ensure safe and stable operation.
Advantages
- High Refrigeration Efficiency:
- Precise and Stable Temperature Control
- Lower Noise
- Compact Footprint
- Wide Applicability
Products Parameters
| Item & Description | Water Cooled Chiller | ||
| Model | MG-360WS | ||
| Cooling capacity | 1260kw/ 1,083,600kcal/h | ||
| Input power | 272kw | ||
| Power supply | 380v/50hz/3ph | ||
| Refrigerant | Type | R407c | |
| Type of control | Capillary tubes | ||
| Compressor | Type | Semi-tight screw type | |
| Qty | 2 | ||
| Evaporator | Model | Internal-screw shell and tube | |
| Flow of refrigerated water (m³/h) | 217 | ||
| Pressure loss (kpa) | 67 | ||
| Water pipe interface (pt) | 8'' | ||
| Condenser | Model | External thread shell and tube | |
| Protector | High and low pressure, overload, anti-phase, compressor over temperature, fusible plug, automatic temperature switch protection, etc. | ||
| External Dimension | L (mm) | 4100 | |
| W(mm) | 1750 | ||
| W(mm) | 2290 | ||
| Set Weight | kg | 5340 | |
| Running Weight | kg | 5830 | |
Products Details
Our Case
140HP Air-Cooled Screw Chiller Customized Solution
(Applicable Scenarios: General Industrial Fields, Such as Chemical, Plastic)
Customer Needs
A high-capacity, durable general-purpose industrial chiller for critical production line cooling, requiring superior corrosion resistance and long-term reliability of key components.
Customized Solution
We recommended the MG-140AS 140HP Air-Cooled Screw Chiller with the following key customizations for enhanced performance and durability
Material Upgrade
The evaporator shell and flanges are constructed with SS316 stainless steel, paired with 28mm thickened copper tubes, significantly improving overall corrosion resistance for demanding applications.
Core Components
Equipped with high-efficiency Bitzer compressors from Germany, ensuring reliable and powerful core refrigeration performance.
Control System
Integrated with a Siemens PLC and display screen, providing precise intelligent control and clear operational monitoring.
Overall Performance
The combination of premium components and advanced control guarantees long-term operational stability, reliability, and energy efficiency.
Customization Highlights
Corrosion-resistant material upgrade + International brand core components = Durable and efficient operation in demanding industrial environments.
