Product Feature:
The oil-injected screw compressors have excellent viscosity temperature performance, good Oil-water separation and corrosion resistance.
It is really easy for installation and there is no special need of maintaining.
There are various kinds of type options in order to meet various kinds of need.
Product Description:

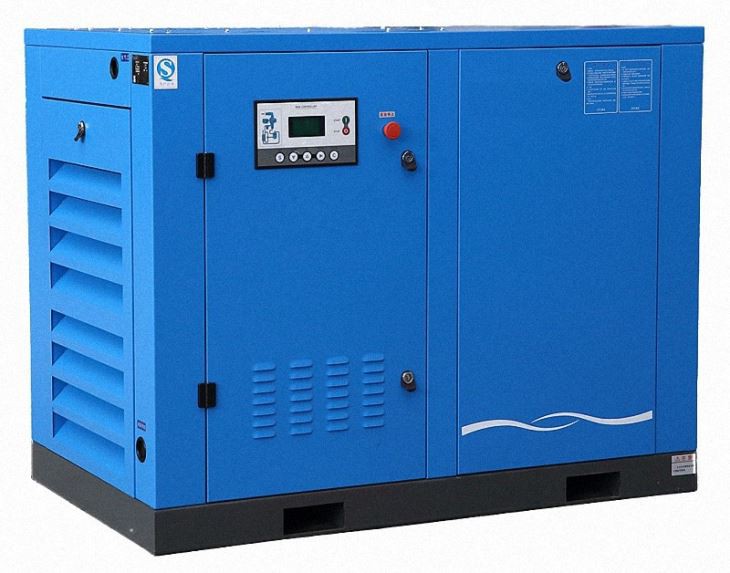

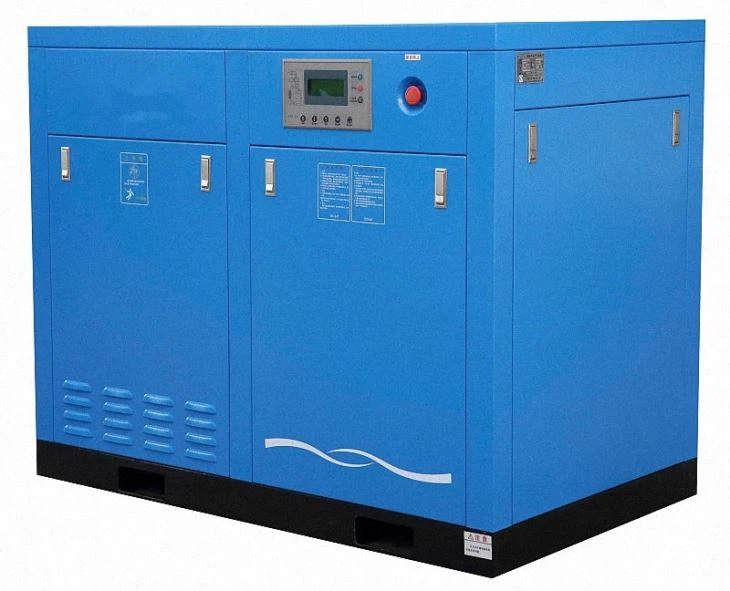

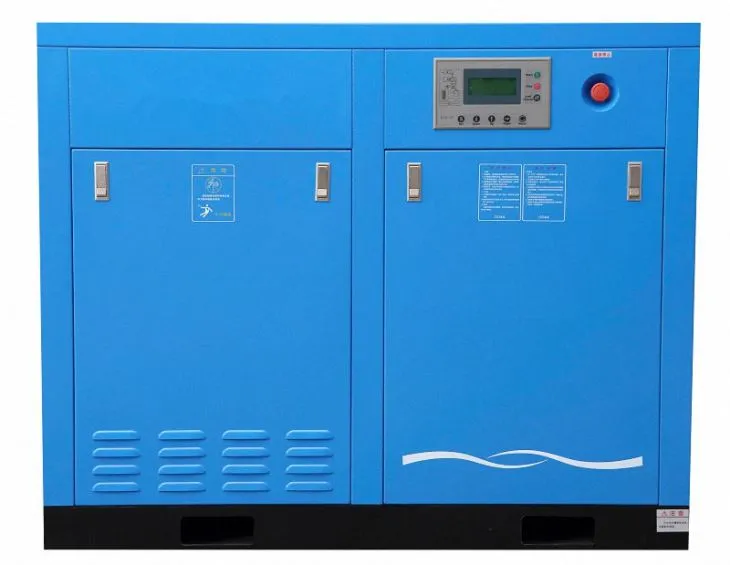

The oil-injected screw compressors adopt frequency control of motor speed technology and the host for asynchronous motor, which help to greatly reduce manufacturing cost and energy consumption. In addition, there are 7 types of model options and people could have a better choice according to their need. Due to the high performance, these oil-injected screw compressors can be widely used for lubricating the moving parts of the compressor cylinder and the exhaust valve. Plus, the blue and elegant appearance is not easy to get dirty. The air compressor is in the environment of high pressure, high temperature and condensed water, and the air compressor oil is equipped with excellent high temperature oxidation stability, low carbon deposition tendency.
Technical data
Model | Drive type | Motor power | F.A.D | Connection（lnch） | Dimensions | Weight |
XZH-V7.5 | Belt Driven | 7.5 | 0.4~1.1@0.8 | G1/2“ | 1060*600*950 | 270 |
XZH-V11-8 | 11 | 0.5~1.7@.8 | G3/4“ | 1060*600*950 | 315 | |
XZH-V15-8 | 15 | 0.8~2.4@0.8 | G1“ | 950*870*1230 | 390 | |
XZH-V22D-8 | Direct Driven | 22 | 1.0~3.6@0.8 | G1“ | 1410*850*1135 | 590 |
XZH-V37D-8 | 37 | 1.8~6.2@0.8 | G1-1/2“ | 1530*930*1255 | 780 | |
XZH-V55D-8 | 55 | 3.0~10.0@0.8 | G1-1/2“ | 1800*1125*1430 | 1250 | |
XZH-V75D-8 | 75 | 3.9~13.0@0.8 | G2“ | 2000*1300*1600 | 1550 |
