PRODUCT DESCRIPTION

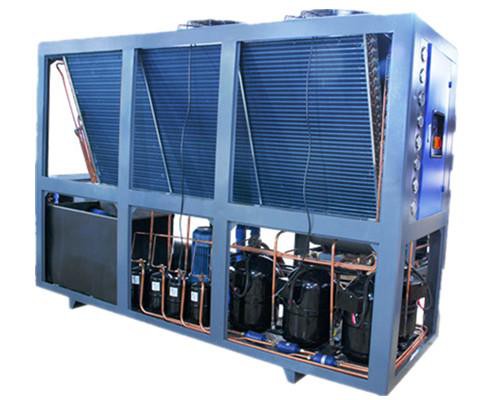

Air Cooled Water Chiller Price
1)Air cooled water chiller 50ton
2)Scroll Compressor *4
3) Cooling Capacity:122500kcal/h; 142kw
4) CE Certificate
5) Air cooled water chiller price good,chiller adopts Copeland SANYO compressor,etc.
6) Built-in stainless steel water tank/shell and tube evaporator( the tank with coil are made of 1mm copper to make sure the good quality)
7) With good pump and Schneider electric, ensure chiller stable running
PRODUCT DETAILS
|
Air cooled water chiller price with inside water tank, water pump, electric control box, it's complete machine Compressor: Mitsubishi/Sanyo/Copeland etc brand or your claim. |
Evaporator: High efficient Shell & Tube Refrigerant: R22/R407c/R134a or your claim Condenser: adopt "V" type with low noise outer-rotor axial fan |
Product technical
|
Model |
MG-30A |
MG-40A |
MG-50A |
||
|
Cooling capacity |
KW |
84 |
112 |
142 |
|
|
Kcal/hr |
73000 |
96500 |
122500 |
||
|
Input power |
kw |
25 |
32.9 |
42.5 |
|
|
Power supply |
3PH/380v/50hz |
||||
|
Refrigerant |
Type |
R22/R407c |
|||
|
Type of control |
Capillary Tube/Expansion valve |
||||
|
Compressor |
Type |
Hermetic piston/scroll type |
|||
|
Quantity |
2/3 |
4 |
4 |
||
|
Input power |
22.5 |
30 |
37.5 |
||
|
Condenser |
Type |
Shell and tube Highly effective red copper pipe covered into aluminium fins+low noise outer-rotor axial fan |
|||
|
Cooling air flow(m3/h) |
30000 |
40000 |
48000 |
||
|
Fan Power Kw |
0.55*4 |
0.55*4 |
0.75*4 |
||
|
Evaporator |
Type |
Coli type/Internal thread high efficiency shell and tube heat exchange |
|||
|
Chilled water flow(m3/h) |
18 |
20 |
22 |
||
|
Chilled water outlet&inlet |
3.0 |
3.0 |
3.0 |
||
|
Cistern Storage |
L |
370 |
400 |
500 |
|
|
Safety Protection |
High and low pressure protection,overload protection, anti-phase protection,compressor over temperature protection,fusible plug protection,automatic temperature switch protection,etc. |
||||
|
Dimension |
L×W×H mm |
2800×930×1750 |
3180×1140×2180 |
3350×1300×2400 |
|
|
Net weight Kg |
580 |
640 |
840 |
||
FAQ
Q: How to choose right model ?
Generally speaking , according cooling capacity choose right model. Or your machine supplier advise capacity . If you don't know , please contact us for further information .
Q: What difference between air cooled and water cooled chiller ?
According the cooling way, it's has air cooled and water cooled 2 type chiller. Air cooled chiller not need cooling tower, more simple than water cooled. Water cooled working with cooling tower together, that's a complete cooling system.
Q: Can you provide OEM service ?
Yes, we can accept OEM service.
Q: What about the warranty ?
12 Months after B/L date. Any failure occurred within the period due to our responsibility, we'll supply you the spare parts for free, also permanent technical support and consultation all life long for the machines.
Application
Air cooled water chiller price chiller are used in a variety of applications to provide cooling and temperature control. Some common industrial chiller applications include:
1. Manufacturing: Industrial chillers are used in manufacturing processes to cool and maintain consistent temperatures for machinery, molds, and materials. They are commonly used in plastics, food processing, and pharmaceutical manufacturing.
2. Medical: Medical imaging equipment, such as MRI machines, require consistent cooling to maintain performance and avoid overheating. Industrial chillers are used in hospitals and medical facilities to provide this cooling.
3. Data Centers: Large data centers generate significant heat, and industrial chillers are used to cool the equipment and maintain stable temperatures to prevent system failures.
4. Printing: Printing presses generate heat, and industrial chillers are used to provide cooling to maintain consistent print quality and prevent damage to equipment.
5. HVAC: Industrial chillers are used in large commercial buildings for HVAC systems to provide cooling and temperature control for large spaces.
6. Beverage and Food Processing: Industrial chillers are used for cooling and temperature control in beverage and food processing industries to maintain product quality, safety, and consistency.
7. Chemical Processing: Industrial chillers are used in chemical processing industries to cool and maintain consistent temperatures for chemical reactions and prevent overheating.
8. Plastics: Plastics manufacturing requires precise temperature control to ensure quality and consistency, and industrial chillers are commonly used in this industry.
