PRODUCT DESCRIPTION

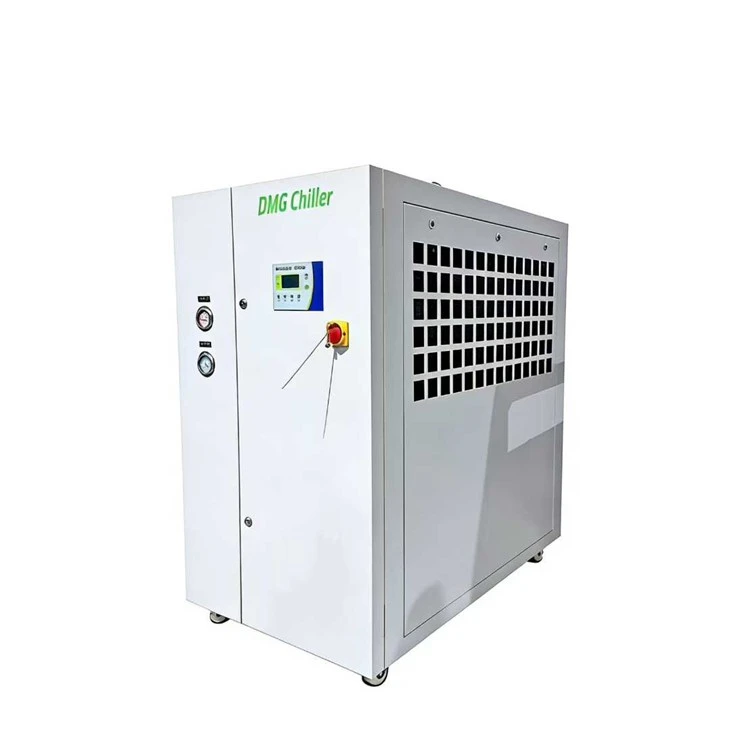

Air Cooled Chiller Descrition
Air Cooled Chiller are designed of case type, plastic spraying shell, compact structure, convenient installation, low noise, multiple protection function, safe operation, high efficiency and energy saving. Air cooled chiller running without cooling tower , can be installed directly at the work site.
Adopts shell and tube evaporator, scroll compressor and heat exchanger, reasonable piping design,meet the requirements of different industies. It can be widely used in the plastic industry ,Also offer customized according to customer's special requirement.
PRODUCT DETAILS
|
|
 |
 |
 |
 |
Water chiller plant Technical Parameters
| Item & description | Water chiller plant | ||||
| Model | MG-20A | ||||
Cooling capacity |
W | 56678 | |||
| Kcal/hr | 48800 | ||||
Input power kw |
16.8 | ||||
| Power supply | 3PH/380v/50hz | ||||
Refrigerant |
Type | R22/R407c | |||
| Type of control | Capillary Tube/Temperature-sensitive and External Pressure-equalizing Expansion valve | ||||
Compressor |
Hermetic piston/scroll type | ||||
Condenser |
Type | External Thread High Efficiency shell and tube heat exchange | |||
| Cooling air flow m3/h | 20000 | ||||
| Fan power | 0.55*2 | ||||
Evaporator |
Type | Coli type/Internal thread high efficiency shell and tube heat exchange | |||
| Chilled water flow(m3/h) | 17 | ||||
| Chilled water outlet&inlet | 2.0 | ||||
Cistern Storage L |
270 | ||||
Water pump KW |
1.5 | ||||
Safety Protection |
High and low pressure ,overload ,anti-phase ,compressor over temperature ,fusible plug,automatic temperature switch protection,etc. | ||||
Dimension |
L mm | 1950 | |||
| W mm | 930 | ||||
| H mm | 1600 | ||||
Net weight Kg |
480 | ||||
Our Services
After-sale service:
1. Following your purchase of our chiller , we are pleased to offer complimentary remote installation guidance to ensure smooth and proper setup, along with all necessary technical drawings to support the installation process.
2. All our products come with a standard warranty period of 15 months. During this warranty term, for any operational issues or malfunctions that arise due to inherent defects in the chiller unit itself, we will provide full and free after-sales support to diagnose, troubleshoot, and resolve the problem completely.
3. In the event that any components or parts of the chiller experience breakdown or failure within the specified conditions, we will supply replacement parts at no additional cost to you.
