Water Chiller 3HP
video
Water Chiller 3HP

Water Chiller 3HP

Industrial Air-Cooled Water Chiller with Scroll Compressor.
Send Inquiry
1

Products Description

Industrial Air-Cooled Chiller - Advanced and Comprehensive | Customizable
  Our air-cooled chillers possess high-efficiency scroll compressors and air-cooled heat exchangers with corrosion-resistant fins. Equipped with low-noise external rotor axial fans, they avoid the need for external cooling towers and water pumps. This system assures stable performance, low operating noise, easy maintenance, and long service life.
  Customized chiller solutions can also be offered according to your specific requirements.





2

Technical Parameter



Models MG-03A MG-05A MG-08A MG-10A MG-12A MG-15A MG-20A MG-25A MG-30A MG-40A MG-50A
Power Source 3PH/380v/50hz
Cooling Capacity BTU/hr 28768 48806.4 76384 99200 120630 152768 193638.4 248000 289664 382912 486080
kcal/hr 7250 12300 19250 25000 30400 38500 48800 62500 73000 96500 122500
W 8420 14285 22358 29036 35305 44715 56678 72590 84785 112078 142276
Input Power kW 2.8 4.3 6.8 8.4 10.2 13.6 16.8 21.5 25 32.9 42.5
Compressor Model   Hermetic Scroll/ Piston Type
Input Power kW 2.1 3.75 6 7.5 9 11.2 15 18.7 22.5 30 37.5
Refrigerant Species   R22/R407C
Throttle Mode   Capillary Tubes/ Temperature-sensitive and External Pressure-equalizing Expansion Valve
Evaporator Model   Coil Type/Internal Thread High Efficiency Shell and Tube heat exchanger
Folw of Refrigerated Water m3/h 7 12 12 16 16 18 18 20 20 30 30
Water Pipe Interface PT 1" 1.5" 1.5" 1.5" 1.5" 2.0" 2.0" 2.0" 2.5" 3.0" 3.0"
Condenser Model   High Efficient Red Copper Tube Covered Into Aluminium Fins+ Low Noise Outer-rotor Axial Fan
Cooling Air Amount m3/h 3500 7000 7300 9000 9500 15600 16500 20500 22500 31000 40000
Fan Power kW 0.18x1 0.18x2 0.18x2 0.25x2 0.25x2 0.55x2 0.55x2 0.55x3 0.55x4 0.55x4 0.75x4
Cistern Storage (L)   64 80 90 90 90 230 250 270 270 300 300
Protector Devices   High and low pressure protection,overload protection, anti-phase protection, compressor over temperature protection, fusible plug protection, automatic temperature switch protection,etc.
External Dimension L mm 980 1250 1300 1300 1400 1750 1950 2720 2800 3180 3350
W mm 680 750 800 800 850 930 930 1050 1050 1140 1300
H mm 1200 1330 1480 1480 1580 1600 1600 1720 1750 2180 2400
Set Weight kg 210 270 370 375 396 475 820 895 1095 640 840



3

Features & Advantages



  • High-Efficiency Scroll Compressor
  • Heat Exchanger with Corrosion-Resistant Fins
  • Low-Noise External Rotor Axial Fans
  • No Need for External Cooling Tower and Water Pump
  • Stable Performance
  • Low Operating Noise
  • Easy Maintenance
  • Long Service Life



4

Application Range





  1. Industrial Manufacturing

    · Plastic industry: cooling for injection molding, blow molding, and extrusion

    · Metal processing: CNC machines, laser cutting, and welding equipment

    · Chemical processes: reactor cooling and solvent condensation

  2. Food & Beverage Industry

    · Temperature control for food processing equipment

    · Beverage production lines cooling

    · Rapid cooling for milk, beer, and other liquids

  3. Pharmaceutical & Medical

    · Heat dissipation for medical equipment (e.g., MRI, CT)

    · Process cooling in pharmaceutical production

    · Laboratory equipment cooling (centrifuges, reactors, etc.)

  4. Electronics & Semiconductor

    · Precise temperature control for electronic devices

    · Cooling processes in PCB manufacturing

    · Thermal management in chip testing and packaging

  5. HVAC Systems

    · Central air conditioning for commercial buildings

    · Cooling for office buildings, hotels, and shopping malls

    · Temperature regulation for data centers

  6. Textile & Dyeing

    · Cooling for dyeing machines

    · Heat control for stenter machines

  7. New Energy & Battery Production

    · Cooling for lithium battery testing and aging processes

    · Thermal management of energy storage systems



5

Packaging



2













* Before shipping, your machines will be tested for hours to gurantee the normality regradless of the test has been conducted.

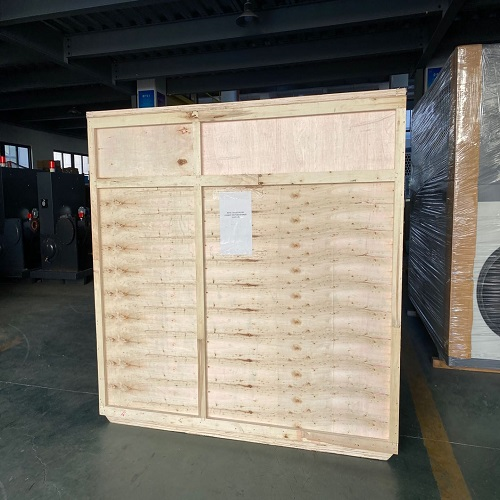

* We choose solid wooden package to protect your goods.

* If you have other needs, you can reach out to get additional help.



6

FAQ



1. What makes you different with others?
1) Our Excellent Service
For a quick, no hassle quote just send email to us
We promise to reply with a price within 24 hours - sometimes even within the hour.

2).Our quick manufacturing time
For Normal orders, we will promise to produce within 15-20 working days.
We can ensure the delivery time according to the formal contract

2. May I know the status of my order?
Yes .We will send you information and photos at different production stage of your order. You will get the latest information in time.

3.Can I use our own brand logo on the products?
Yes. We provide OEM/ODM service to our customers. Our professional engineers having rich experience in heat pump design and manufacture. Just tell us your ideas or provide the drawing, we can help you to carry out your ideas.

4.What is your terms of delivery?
We accept FOB, CFR, CIF, EXW etc. You can choose the one which is the most convenient or cost effective for you.

5. What is your payment terms?
1) T/T 40% deposit, T/T balance 60% paid before shipment;
2) T/T 40% deposit, balance 60% paid through irrevocable L/C at sight;
3) Other payment terms are negotiable.

6. What about warranty?
12 Months after B/L date. Any failure occurred within the period due to our responsibility, we'll supply you the spare parts for free, also permanent technical support and consultation all life long for the machines.
