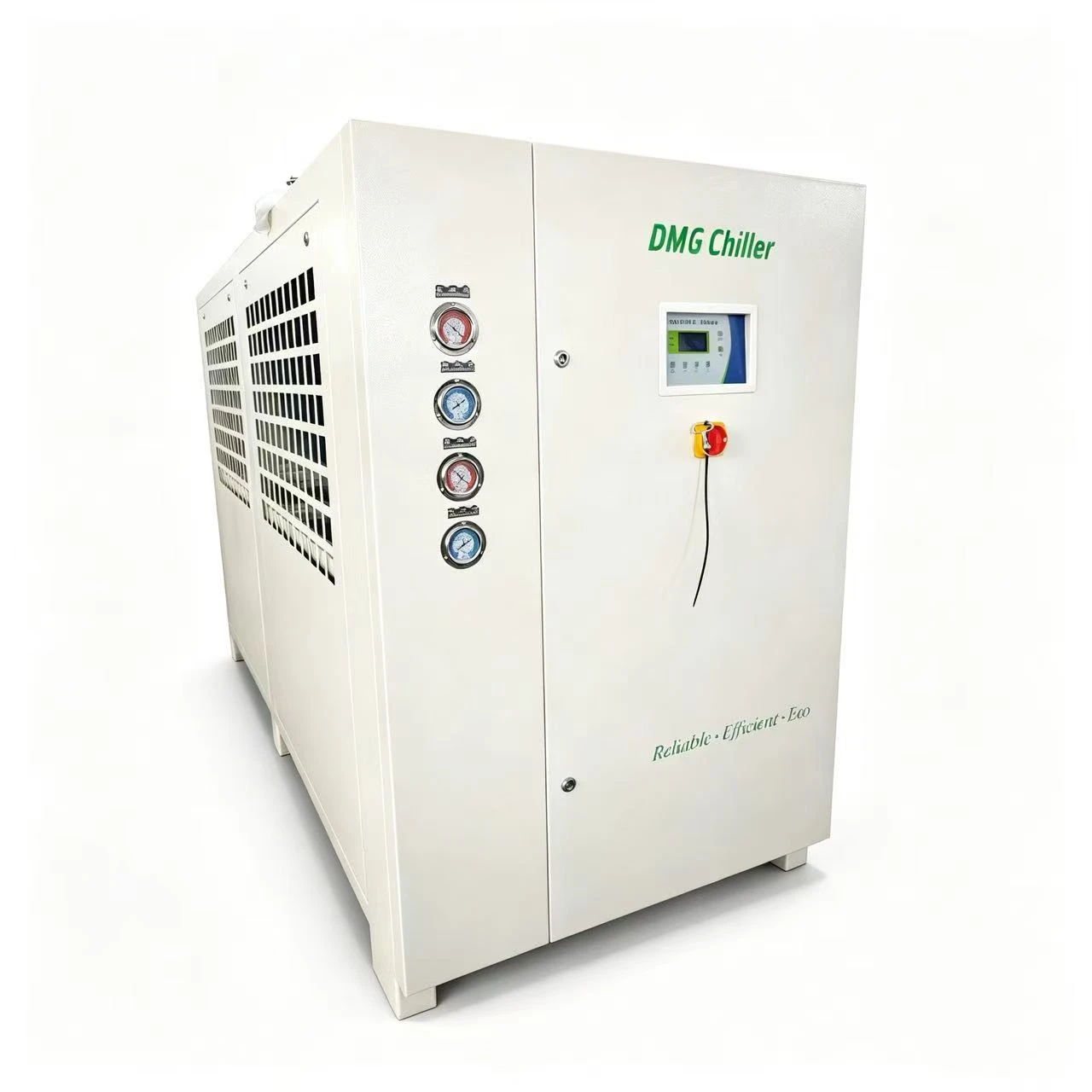

The MG‑25A air‑cooled water chiller is designed for medium‑to‑heavy industrial process cooling. Its V‑shaped high‑efficiency condenser and shell‑and‑tube evaporator ensure rapid heat rejection and stable 10℃ chilled water supply even under high workshop ambient temperature. Equipped with digital temperature display, automatic control & fault alarm output, and a full multi‑layer safety protection system, the unit runs smoothly for 24/7 continuous production - lowering your downtime, water cost and floor space
our Quality

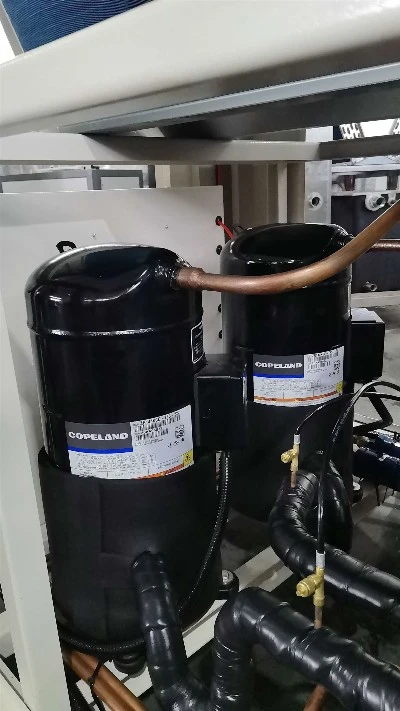

Dual Genuine Copeland Scroll Compressors (25HP ×2, USA)
Low vibration, low noise, high efficiency & long service life; handles heavy continuous load reliably.
Top‑tier Branded Components
Schneider electrical, Southern stainless water pump (KQ 2.2kW), FENGSHEN pressure gauge/controller, all‑stainless steel 270L water tank.
Technical Parameters
| Item | Specification |
|---|---|
| Model | MG‑25A |
| Cooling Capacity | 72 kW / 62,500 kcal |
| Evaporator Temp | 10℃ |
| Condenser Temp | 54.4℃ |
| Input Power | 21.5 kW |
| Power Supply | 240V / 60Hz / 3Ph (custom available) |
| Refrigerant | R407C |
| Control Type | Capillary tube |
| Compressor | Copeland scroll, 25HP × 2, USA |
| Evaporator | Shell & tube type; chilled water flow 20 m³/h; inlet/outlet 2.0″ |
| Condenser | V‑type aluminum fins + low‑noise outer‑rotor axial fan; airflow 20,500 m³/h; fan 0.55kW × 3 |
| Water Tank | 270 L, all stainless steel |
| Protection | High/low pressure, overload, phase‑loss, compressor over‑temp, fusible plug, auto temp‑switch |
| Dimension (L×W×H) | 2720 × 1050 × 1720 mm |
| Net Weight | 895 kg |
