Products Parameter
| Model | Flow (m3/h) | Fan diameter (mm) | Motor power (KW) | Ranting current of motor (A) | Overall size (mm) | Weight (Kg) | ||
| Tower height | Outer diameter | Net.weight | Running Weight | |||||
| MG-6T | 6 | 584 | 0.25 | 1 | 1420 | 940 | 54 | 140 |
| MG-8T | 8 | 584 | 0.25 | 1 | 1660 | 940 | 57 | 141 |
| MG-10T | 10 | 584 | 0.25 | 1 | 1700 | 1040 | 76 | 200 |
| MG-12T | 12 | 584 | 0.25 | 1 | 1780 | 1100 | 84 | 219 |
| MG-15T | 15 | 760 | 0.37 | 1.4 | 1860 | 1250 | 110 | 265 |
| MG-20T | 20 | 760 | 0.55 | 2 | 1920 | 1400 | 140 | 300 |
| MG-25T | 25 | 884 | 0.55 | 2.6 | 1970 | 1400 | 160 | 364 |
| MG-30T | 30 | 884 | 1.11 | 2.6 | 2150 | 1700 | 165 | 369 |
| MG-40T | 40 | 884 | 1.11 | 3.6 | 2280 | 1900 | 191 | 433 |
| MG-50T | 50 | 1190 | 1.5 | 4.4 | 200 | 2200 | 368 | 730 |
| MG-60T | 60 | 1190 | 1.5 | 5.2 | 2530 | 2200 | 423 | 753 |
| MG-70T | 70 | 1470 | 1.5 | 5.2 | 2580 | 2350 | 521 | 913 |
| MG-80T | 80 | 1470 | 2.2 | 7.7 | 2710 | 2500 | 607 | 1023 |
| MG-90T | 90 | 1470 | 2.2 | 7.7 | 2820 | 2900 | 695 | 1130 |
| MG-100T | 100 | 1800 | 4 | 8.8 | 3130 | 3300 | 908 | 1588 |
| MG-125T | 125 | 1800 | 4 | 8.8 | 3350 | 3300 | 1015 | 2035 |
| MG-150T | 150 | 1800 | 4 | 8.8 | 3670 | 3600 | 1310 | 3540 |
| MG-175T | 175 | 1800 | 4 | 8.8 | 3900 | 4000 | 1613 | 3317 |
| MG-200T | 200 | 1800 | 5.5 | 12.6 | 4165 | 4500 | 1796 | 3465 |
Products Description
Our Cooling tower's material is FRP,mainly used in air conditioning cooling system, freezing series, injection molding, leather making, foaming, power generation, steam turbine, aluminum profile processing, air compressor, industrial water cooling and other fields, the most widely used for air conditioning cooling, freezing, plastic chemical industry.
It's feature is apply to small industry area and small cooling range which isn't have more demands for the working fluid or place need control noise pollution.
Working principle
FRP out shell. The heated working fluid be sprayed to the PVC fills, and reacts with cold inlet air for heat transferring, then the heat is exhausted out of the tower by the fan, and the working fluid is collected back to the water tank for circulating.
Characteristic
The characteristic of our cooling tower
Hot-Sale Products

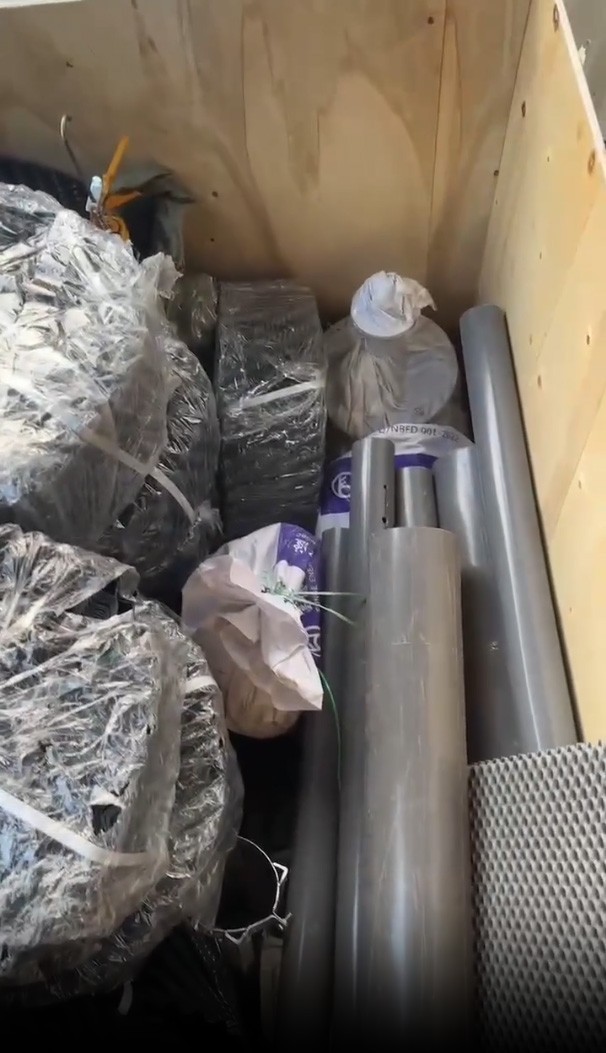

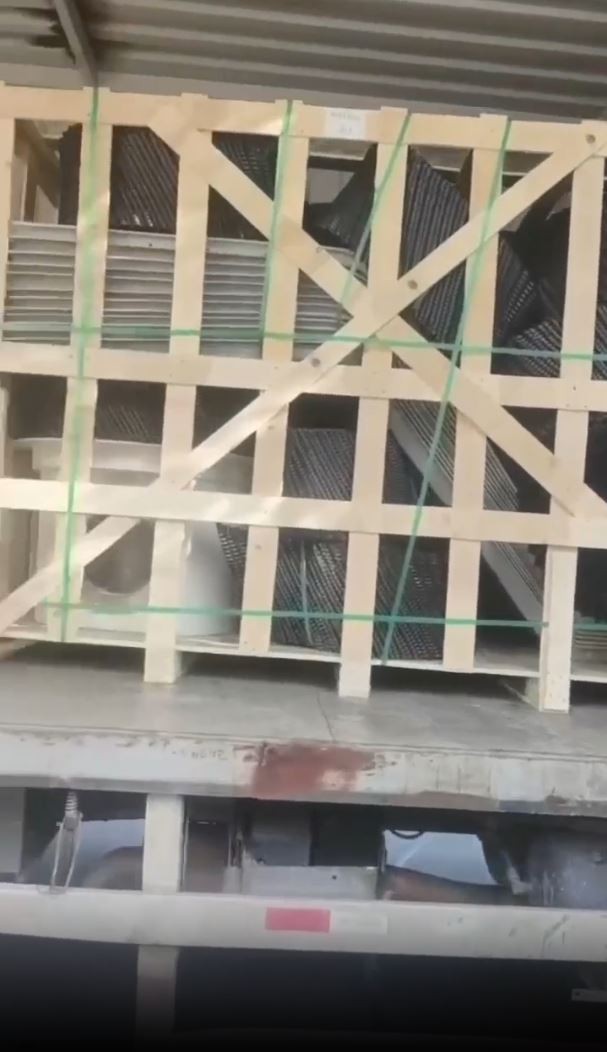

Package&Shipping
Package&Shipping
Our Cooling Tower all use standard wooden crate packaging.Avoid damage caused by collisions during transportation.If you have any other packaging needs, you can contact us.
About Shipping: Deliver from Ningbo port within 15-35 days after the payment.
Company Introduce
WENZHOU DMG MACHINERY Co., Ltd mainly manufacture and export chiller,cooling tower and air compressor.Our factory have advanced assembly,production line and testing equipment.Supporting to develop,design and manufacture refrigeration equipment and screw air compressor that comply with the regulation of ISO9001 quality system,CE standard.
Professional team
50+ Senior engineer effectively control all aspects of the product.
7x24 hours delivery
7x24 hours delivery capacity,is the best partner for enterprise globalization.
FAQ
Q: Can the cooling water volume of the cooling tower be adjusted?
A: Yes, for a given model of cooling tower, the cooling water volume can be adjusted by increasing the water supply pressure or changing the nozzle aperture.
Q: Do cooling towers have requirements for water quality?
A: Generally speaking, the water quality requirements for cooling towers are not strict. However, if there are too many impurities or corrosive substances in the water quality, it may cause damage to the equipment and structure inside the cooling tower, so regular water quality testing and treatment are needed.
Q: Is the cooling tower energy-efficient?
A: Yes, cooling towers can significantly reduce energy consumption and water costs by recycling water resources and adopting efficient cooling methods.
Q: How about the warranty?
A: Within one year from the factory. If the parts are faulty or damaged (except for worn parts due to quality problems), our company will provide these parts for free.
Q: Can it be customized?
A: Absolutely. We will carefully carry out according to your requirements for customized products, and then conduct an in-depth analysis. Finally, we are committed to meeting your expectations for this customization.
Q: How about the payment terms?
A: 1) T/T 40% deposit, T/T balance 60% paid before shipment;
2) T/T 40% deposit, balance 60% paid through irrevocable L/C at sight;
3) Other payment terms are negotiable.
